Nolathane
42237

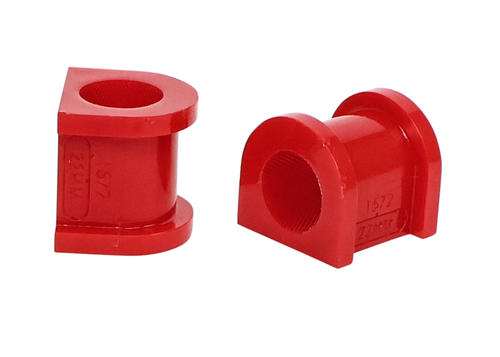

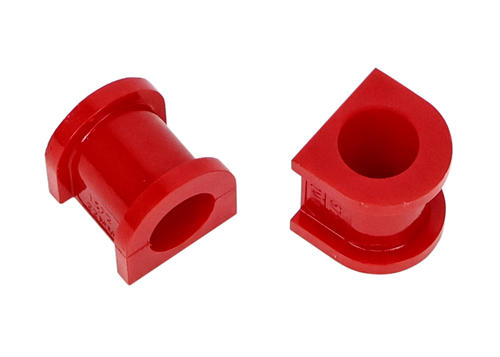

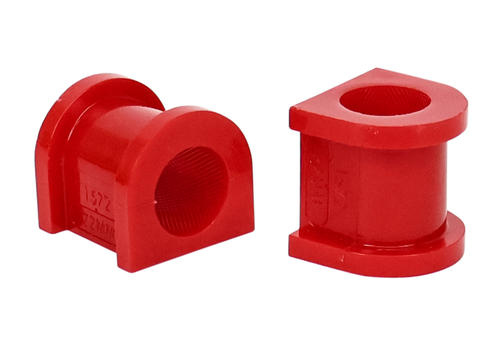

Front Sway bar - mount bushing
42237
Front Sway bar - mount bushing
Dealers
Share
Print
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Larko's Comments:
One of the most common suspension service items as they are easily inspected and simple to replace. Nolathane sway bar mounts feature the latest in material formulation technology with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication and performance. Be sure to measure the sway bar diameter to ensure appropriate diameter mount bushing is selected.
Important Notes:
22mm
Kits Required: 1
Warranty: Lifetime
Install Guide
INSTALL GUIDE
Features
  Nolathane formulation boasts resistance to oil, grease, ozone and weathering
  Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life
  Designed with the installer in mind by reducing the need of specialised skills, tools and equipment
  Backed by a LIMITED LIFETIME WARRANTY - For more information click here

Features
  Nolathane formulation boasts resistance to oil, grease, ozone and weathering
  Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life
  Designed with the installer in mind by reducing the need of specialised skills, tools and equipment
  Backed by a LIMITED LIFETIME WARRANTY - For more information click here
Installation
Fitment
Time (hrs)
Degree of
Difficulty
Wheel Alignment
Recommended
1 hrs DIY - Do It Yourself
Installation
Fitment
Time (hrs)
Degree of
Difficulty
Wheel Alignment
Recommended
1 hrs DIY - Do It Yourself
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
4 2 30 mm 22 mm 36 mm 4.5 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Packaged Weight & Dimensions
Weight Depth Width Height
0.060kg 7cm 14cm 20cm
Kit Specifications
Bush Type 4
Bush Qty 2
OD (A) 30 mm
ID (B) 22 mm
L (C) 36 mm
FL (D) 4.5 mm
FLOD (E)
C/Tube QTY
C/Tube Size
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Packaged Weight & Dimensions
Weight Depth Width Height
0.060kg 7cm 14cm 20cm
