Nolathane
42170

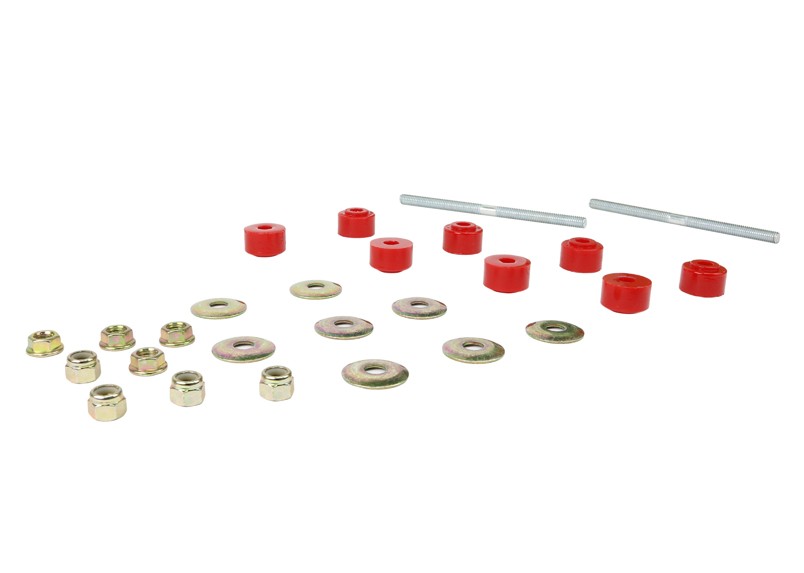

Front Sway bar - link
42170
Front Sway bar - link
Dealers
Share
Print
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge
Larko's Comments:
Knock, knock, knock! That's the sound you hear when your sway bar links are not doing their job. Links are a common service item due to either worn or over compliant bushings/ joints and possibly bent or snapped centre bodies. Upgrade with Nolathane links boasting heavy duty joints and uprated centre body that outlast and outperform the original equipment.
Important Notes:
Vehicle specific link
Kits Required: 1
Warranty: 3 Year / 60,000Kms
Features
  Nolathane formulation boasts resistance to oil, grease, ozone and weathering
  Supporting metal hardware with corrosion resistant coatings completes the kit for installation
  Designed with the installer in mind by reducing the need of specialised skills, tools and equipment
  Robust centre body prevents flexing, bending or breaking under excessive loads
  Backed by a 3 year/ 60,000km warranty - For more information click here

Features
  Nolathane formulation boasts resistance to oil, grease, ozone and weathering
  Supporting metal hardware with corrosion resistant coatings completes the kit for installation
  Designed with the installer in mind by reducing the need of specialised skills, tools and equipment
  Robust centre body prevents flexing, bending or breaking under excessive loads
  Backed by a 3 year/ 60,000km warranty - For more information click here
Installation
Fitment
Time (hrs)
Degree of
Difficulty
Wheel Alignment
Recommended
1 hrs DIY - Do It Yourself
Installation
Fitment
Time (hrs)
Degree of
Difficulty
Wheel Alignment
Recommended
1 hrs DIY - Do It Yourself
Kit Specifications
Bushing Type 20
Link Type Adjustable On Car Adjustable Adjustment Bolt Diameter Overall Length Configuration
Bushing Yes No 30mm 10mm 130mm-160mm Vertical
Notes:
Contains Hardware
Packaged Weight & Dimensions
Weight Depth Width Height
0.380kg 10cm 16cm 26cm

Kit Specifications
Bushing Type 20

Link Type Bushing
Adjustable Yes
On Car Adjustable No
Adjustment 30mm
Bolt Diameter 10mm
Overall Length 130mm-160mm
Configuration Vertical
Packaged Weight & Dimensions
Weight Depth Width Height
0.380kg 10cm 16cm 26cm
Videos

Fitting Tip - Link Pin Bushings

How hard is Nolathane?

Larko talks Family Movers
Videos

Fitting Tip - Link Pin Bushings

How hard is Nolathane?

Larko talks Family Movers
42170
Vehicle Applications
42170 is suitable for the following vehicles. Select a vehicle for specific fitment details:
FORD FAIRLANE ZA, ZB, ZC, ZD(3/1967-3/1972)
FORD FAIRLANE ZF, ZG, ZH(4/1972-4/1979)
FORD FAIRLANE ZJ(5/1979-2/1982)
FORD FAIRLANE ZK, ZL(3/1982-5/1988)
FORD FAIRLANE NF, NL(3/1995-12/1999)
FORD FAIRLANE AU(3/1999-12/2002)
FORD FALCON XK, XL, XM, XP(9/1960-8/1966)
FORD FALCON XR, XT, XW, XY(9/1966-1972)
FORD FALCON XA, XB, XC(1972-2/1979)
FORD FALCON XD(3/1979-9/1982)
FORD FALCON XE, XF(10/1982-10/1987)
FORD FALCON XG UTE AND VAN SHOCK FRONT END(3/1993-10/1996)
FORD FALCON EA, EB, ED(11/1987-8/1994)
FORD FALCON EF, EL, XH(7/1994-7/1998)
FORD FALCON AU(8/1998-8/2002)
FORD LTD P5, P6 INCL SILVER MONARCH AND TOWN CAR(8/1973-6/1979)
FORD LTD FC(6/1979-2/1982)
FORD LTD FD, FE(3/1982-5/1988)
FORD LTD DF, DL(3/1995-6/1999)
FORD LTD AU(6/1999-8/2002)
FORD MUSTANG EARLY, CLASSIC MODEL(10/1965-1973)
FORD TE50 AU(8/1998-8/2002)
FORD TL50 AU(8/1998-8/2002)
FORD TS50 AU(8/1998-8/2002)
HOLDEN CAPRICE VQ(3/1990-2/1994)
HOLDEN COMMODORE VB, VC, VH, VK, VL INCL HDT(1978-7/1988)
HOLDEN COMMODORE VN, VP, VG(8/1988-7/1993)
HOLDEN COMMODORE VR, VS(7/1993-9/1997)
HOLDEN HOLDEN HK, HT, HG(2/1968-6/1971)
HOLDEN HOLDEN HQ, HJ, HX, HZ, WB(7/1971-7/1985)
HOLDEN MONARO HK, HT, HG(7/1968-6/1971)
HOLDEN MONARO HQ, HJ, HX, HZ(7/1971-8/1979)
HOLDEN STATESMAN HQ, HJ, HX, HZ, WB(7/1971-7/1985)
HOLDEN STATESMAN VQ(3/1990-2/1994)
HSV CALAIS SV88 VL(5/1988-11/1988)
HSV CLUBSPORT SV VP(5/1993-4/1994)
HSV CLUBSPORT VR, VS(8/1993-8/1997)
HSV COMMODORE GROUP A VL(3/1988-3/1989)
HSV COMMODORE GROUP A VN(10/1989-6/1993)
HSV COMMODORE VN, VP, VG(10/1989-2/1991)
HSV GTS VP(8/1992-12/1992)
HSV MALOO VG, VP(10/1990-3/1993)
HSV MALOO VR, VS(7/1993-10/2000)
HSV MANTA VS(4/1995-8/1997)
HSV SENATOR VP(3/1992-8/1993)
HSV STATESMAN VP, VQ, SV90, SV91, SV93(3/1990-2/1994)
MITSUBISHI CHALLENGER PB, PC(4/2007-2016)
NISSAN UTE XFN(1984-1991)
TOYOTA HILUX 4 RUNNER LN61, YN63 4WD(11/1985-9/1989)
TOYOTA HILUX LN107, 111, RN106, 110, 111 4WD(10/1988-12/1997)
TOYOTA HILUX KZN165, LN167, 172, RZN169, 174, VZN167 4WD(11/1997-4/2005)
TOYOTA LEXCEN VN, VP(8/1988-7/1993)
TOYOTA LEXCEN VR, VS(7/1993-9/1997)
UNIVERSAL PRODUCTS SWAY BAR - LINK THREADED ROD AND BUSHINGS
