Nolathane
42032

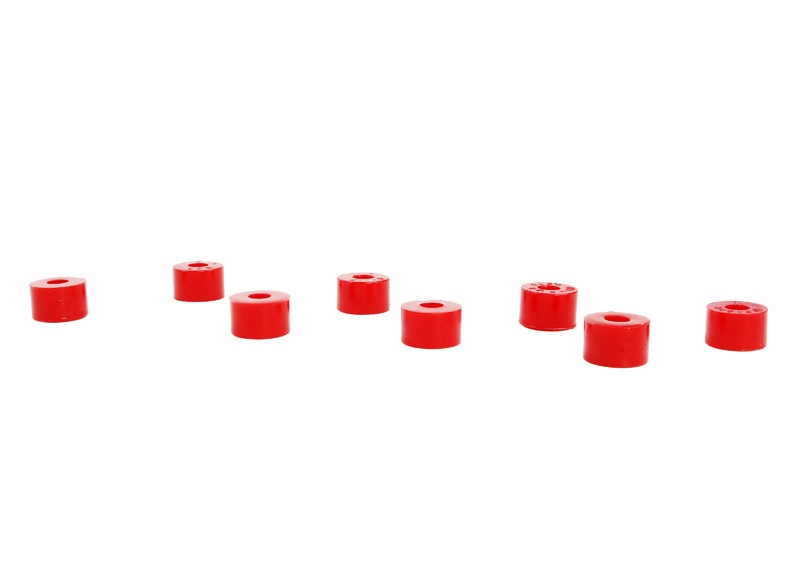

Front Sway bar - link bushing
42032
Front Sway bar - link bushing
Dealers
Share
Print
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge
Larko's Comments:
Worn or deteriorated link bushings although small can have considerable influence over sway bar performance and more notably vehicle handling behaviour. Nolathane formulation bushings are engineered to last and deliver improved driving performance.
Important Notes:
Kits Required: 1
Warranty: Lifetime
Install Guide
INSTALL GUIDE
Features
  Nolathane formulation boasts resistance to oil, grease, ozone and weathering
  Designed with the installer in mind by reducing the need of specialised skills, tools and equipment
  Backed by a LIMITED LIFETIME WARRANTY - For more information click here

Features
  Nolathane formulation boasts resistance to oil, grease, ozone and weathering
  Designed with the installer in mind by reducing the need of specialised skills, tools and equipment
  Backed by a LIMITED LIFETIME WARRANTY - For more information click here
Installation
Fitment
Time (hrs)
Degree of
Difficulty
Wheel Alignment
Recommended
1 hrs DIY - Do It Yourself
Installation
Fitment
Time (hrs)
Degree of
Difficulty
Wheel Alignment
Recommended
1 hrs DIY - Do It Yourself

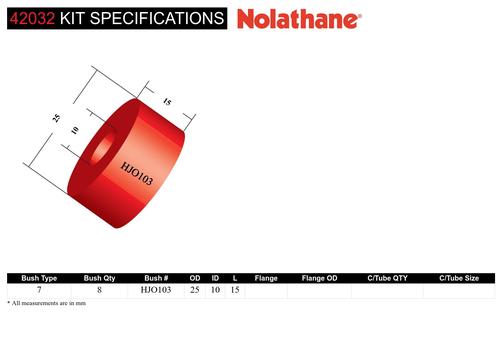

Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
7 8 25 mm 10 mm 15 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Packaged Weight & Dimensions
Weight Depth Width Height
0.070kg 7cm 14cm 20cm
Kit Specifications
Bush Type 7
Bush Qty 8
OD (A) 25 mm
ID (B) 10 mm
L (C) 15 mm
FL (D)
FLOD (E)
C/Tube QTY
C/Tube Size
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Packaged Weight & Dimensions
Weight Depth Width Height
0.070kg 7cm 14cm 20cm
Popular Related Parts
Popular Related Parts
click for 42933
Videos

Fitting Tip - Link Pin Bushings

How hard is Nolathane?

Why Nolathane your small car
Videos

Fitting Tip - Link Pin Bushings

How hard is Nolathane?

Why Nolathane your small car
42032
Vehicle Applications
42032 is suitable for the following vehicles. Select a vehicle for specific fitment details:
CHRYSLER LANCER LA, LB, LC(9/1974-8/1981)
DAIHATSU CHARADE G200, G202, G203(6/1993-6/2000)
DAIHATSU FEROZA F-300, F-300B, F-310 4WD(10/1988-1/1999)
DAIHATSU PYZAR G301, G303(2/1997-7/2000)
DAIHATSU ROCKY F73, F78 HARD TOP AND WAGON(5/1993-1/1999)
FORD COURIER PH 2WD(8/2004-12/2006)
FORD COURIER PH 4WD(8/2004-12/2006)
FORD RANGER PJ, PK 2WD(11/2006-10/2011)
FORD RANGER PJ, PK 4WD(11/2006-10/2011)
HOLDEN JACKAROO UBS16, 17, 56(8/1985-3/1992)
HOLDEN RODEO TFS 4WD(7/1988-2/2003)
HOLDEN SHUTTLE WFR(3/1982-12/1991)
HYUNDAI EXCEL X2 BONNET OPENS FROM GRILL(1989-11/1994)
HYUNDAI EXCEL X3(9/1994-6/2000)
HYUNDAI S COUPE UE2 , UE3(7/1990-3/1996)
HYUNDAI SONATA Y2, Y3(4/1990-8/1998)
INTERNATIONAL SCOUT 80, SCOUT II(1967-1983)
ISUZU BIGHORN UBS16, 17, 56(8/1985-3/1992)
ISUZU RODEO TFS 4WD(7/1988-1996)
ISUZU TROOPER UBS16, 17, 56(8/1985-3/1992)
MAZDA 121, 121L CD(1/1976-1980)
MAZDA 929 LA WAGON(1979-1988)
MAZDA 929 LA SEDAN AND HARDTOP(9/1977-9/1981)
MAZDA 929 HB SEDAN AND HARDTOP(3/1982-4/1987)
MAZDA 929 HC SEDAN AND HARDTOP(5/1987-6/1991)
MAZDA B2500, 2600 BRAVO UN 2WD(11/1998-11/2006)
MAZDA B2500, 2600 BRAVO UN 4WD(11/1998-11/2006)
MAZDA BT-50 UN 2WD(11/2006-10/2011)
MAZDA BT-50 UN 4WD(11/2006-10/2011)
MAZDA MPV LV(10/1993-8/1999)
MAZDA R100 FA2(1969-1971)
MAZDA RX5 MK2(1976-1979)
MAZDA RX7 SA SERIES I, II, III(2/1979-8/1985)
MITSUBISHI CHARIOT D02W, D05W(5/1984-11/1991)
MITSUBISHI CORDIA AA, AB, AC(4/1983-7/1989)
MITSUBISHI FTO DE(1994-1999)
MITSUBISHI GALANT HG, HH FWD(5/1989-3/1993)
MITSUBISHI L200 MA, MB, MC. MD 2WD(3/1980-10/1986)
MITSUBISHI L300 SF, SG, SH, SJ 2WD(10/1986-7/2005)
MITSUBISHI L300 SF, SG, SH, SJ 4WD VEHICLE WITHOUT BONNET(10/1986-7/2005)
MITSUBISHI L300 SJ 2WD(8/2005-12/2013)
MITSUBISHI LANCER LA, LB, LC(9/1974-8/1981)
MITSUBISHI LANCER CA, CB EXCL GSR(1989-5/1992)
MITSUBISHI LANCER CC EXCL GSR(9/1992-7/1996)
MITSUBISHI LANCER CE WAGON(7/1996-6/2002)
MITSUBISHI LANCER CE SEDAN, COUPE AND HATCHBACK(7/1996-6/2002)
MITSUBISHI LANCER CG(7/2002-7/2004)
MITSUBISHI LANCER CH, CS(8/2004-9/2008)
MITSUBISHI LANCER EVOLUTION EVO I, II, III(10/1992-8/1996)
MITSUBISHI LANCER EVOLUTION EVO IV,V, VI(8/1996-3/2001)
MITSUBISHI MAGNA TM, TN(1985-2/1988)
MITSUBISHI MAGNA TN, TP(3/1988-10/1991)
MITSUBISHI MIRAGE RE(9/1992-7/1996)
MITSUBISHI MIRAGE CE(7/1996-8/2004)
MITSUBISHI NIMBUS UA, UB, UC(5/1984-11/1991)
MITSUBISHI PAJERO NA, NB, NC, ND, NE, NF, NG(1983-5/1991)
MITSUBISHI PAJERO NH, NJ, NK, NL(5/1991-4/2000)
MITSUBISHI SIGMA GE(10/1977-5/1980)
MITSUBISHI SIGMA SCORPION GE(3/1978-6/1979)
MITSUBISHI STARION JA, JB, JD(5/1982-1989)
MITSUBISHI TRITON ME, MF, MG, MH, MJ 2WD(1986-10/1996)
NISSAN 240Z HS30(10/1970-5/1974)
NISSAN 260Z RS30(5/1974-12/1978)
NISSAN FAIRLADY HS30(10/1970-5/1974)
NISSAN FAIRLADY RS30(5/1974-12/1978)
NISSAN URVAN E23(4/1980-10/1986)
PROTON JUMBUCK(2/2003-2010)
PROTON M21 C99(10/1997-11/2000)
PROTON PERSONA C96, C97(10/1996-10/2004)
PROTON SATRIA C97, C98 INCL GTI(2/1997-1/2007)
PROTON WAJA C97, C98(5/1993-11/1996)
PROTON WAJA CF(12/2001-7/2006)
PROTON WIRA C97, C98(5/1993-11/1996)
TOYOTA COROLLA KE10,11,16,18(1966-1970)
TOYOTA CORONA RT40, 80(1964-1971)
TOYOTA DYNA BU20, 32, 36, HU30, 40, 50, RU20, 25, 30(8/1977-8/1984)
TOYOTA DYNA LH80, YH81(11/1985-5/1995)
TOYOTA DYNA YY100(7/1995-8/2001)
TOYOTA HIACE RH11, 20, 32, 42(2/1977-12/1985)
TOYOTA HIACE LH30(1979-1982)
TOYOTA HIACE LH51, 60, 61, 63, 70, 71, 73,YH50, 51, 61, 63, 71, 73(1/1983-9/1989)
TOYOTA HIACE LH103, 113, 125, RZH103, 113, 125(8/1989-2/2005)
TOYOTA HIACE LH154, 162, 164, 172, 174, 184(7/1999-2/2005)
TOYOTA HILUX 4 RUNNER LN61, YN63 4WD(11/1985-9/1989)
TOYOTA HILUX RN105, LN106 4WD(10/1988-11/1997)
TOYOTA HILUX LN107, 111, RN106, 110, 111 4WD(10/1988-12/1997)
TOYOTA LITEACE KM10, KM11(1971-1979)
TOYOTA LITEACE YM40, 41 AWD(3/1986-9/1988)
TOYOTA TARAGO YR20, 21, 22, 31, CR21(1/1983-10/1990)
